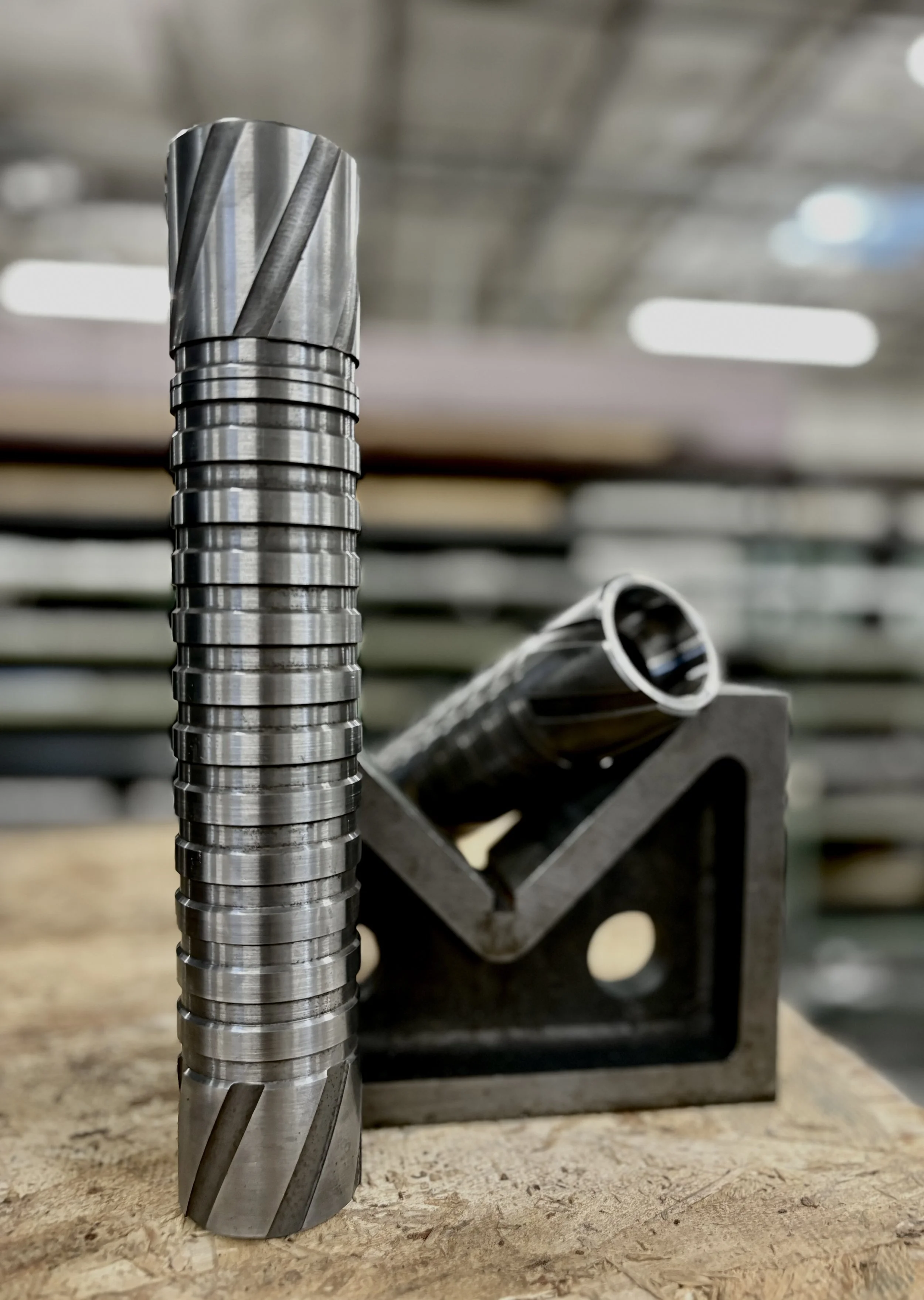

Bypass Plungers
Friction Dart Plungers

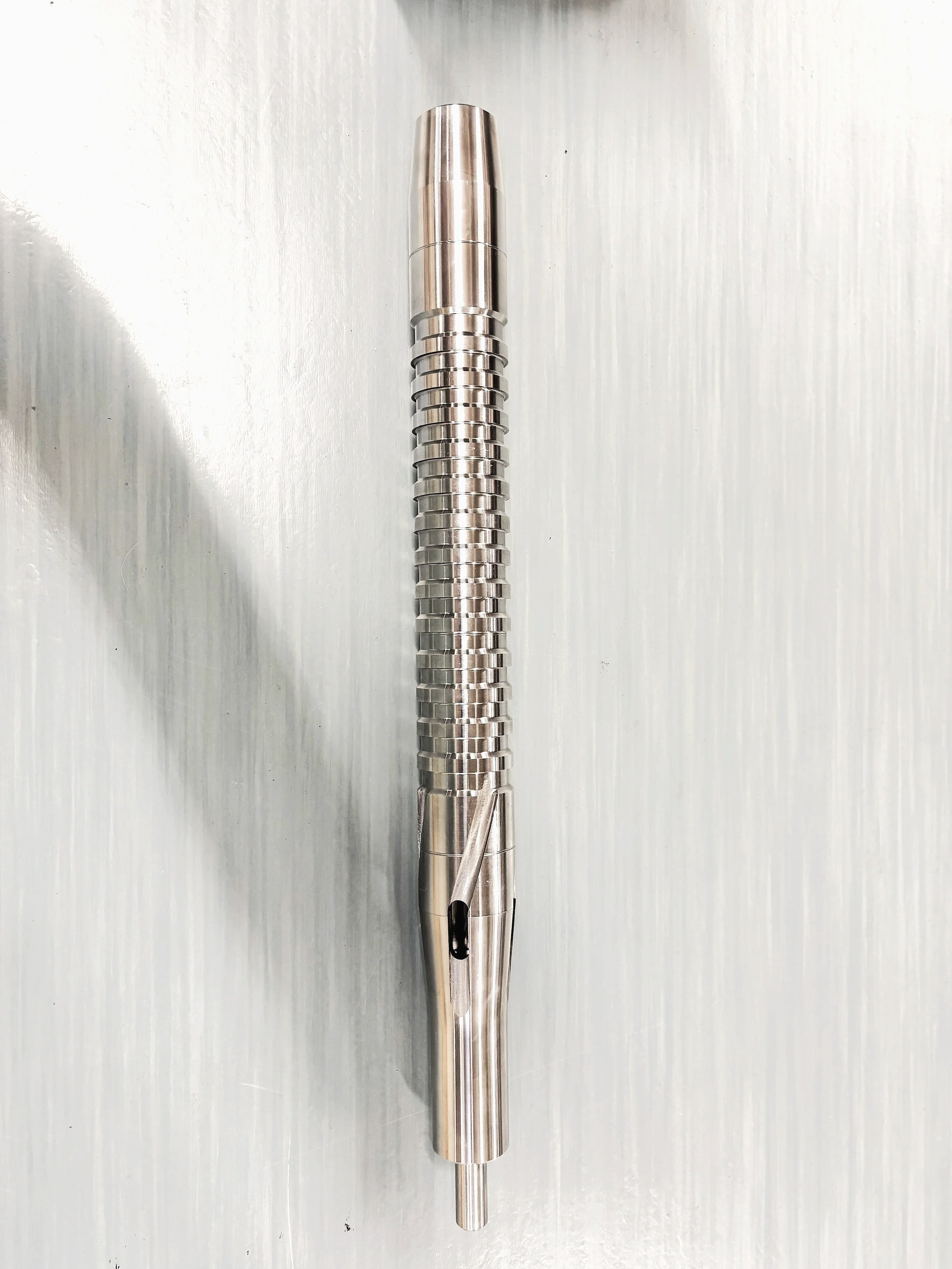

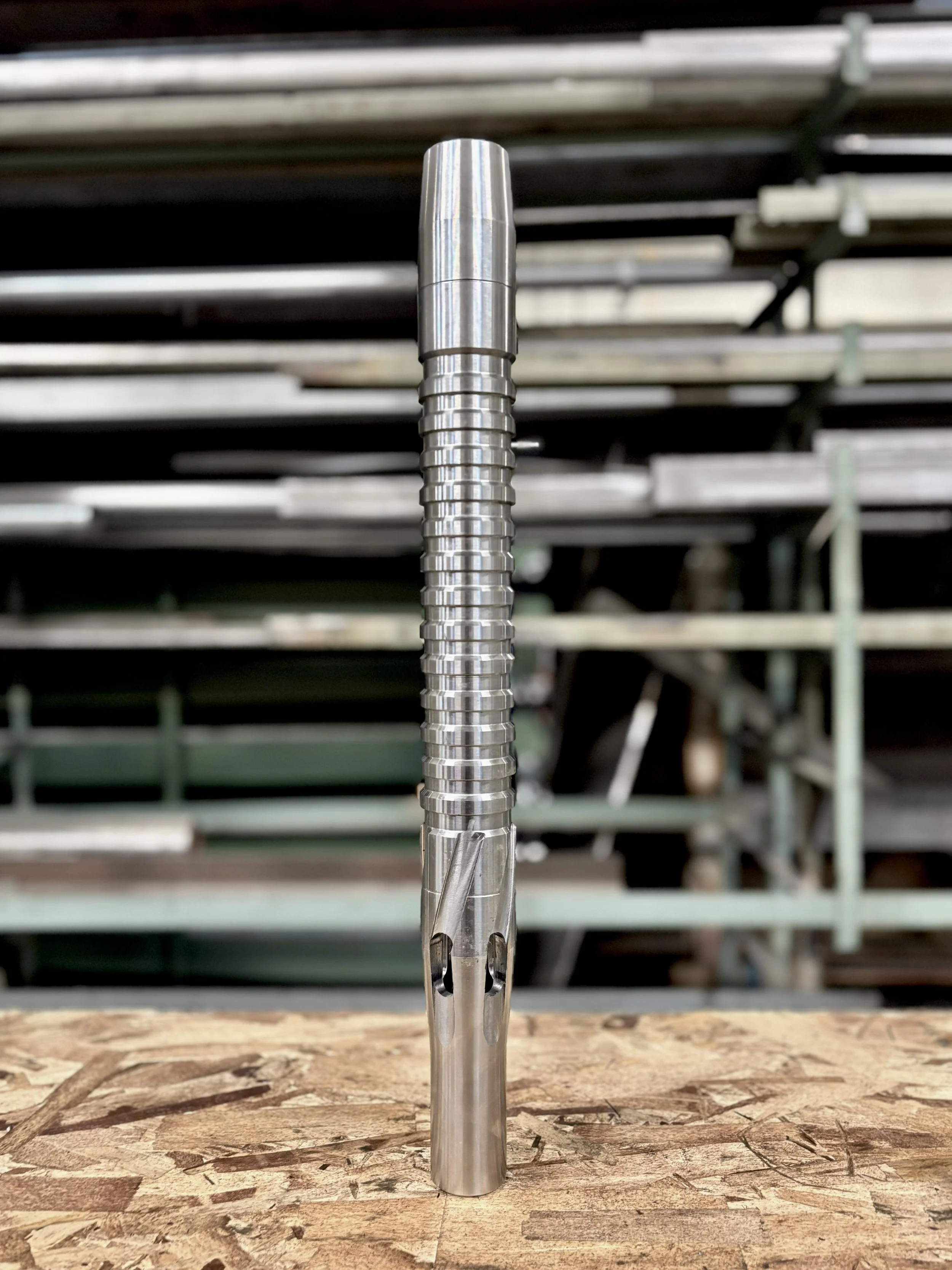

Bypass plungers are suitable for higher volume wells that require less shut in for well recovery. Multiple slot sizes are available in order to achieve optimal plunger fall velocity.
Available Sizes: 2.375 and 2.875
Slot Configurations: 2, 3, and 5
Dimensions:
Alloy Steel: 4140 or 1045
Available Material Types:
Aggressive Wax/paraffin cutting style
Monobody design with adjustable clutch stiffness before shipping!
Product Insights:

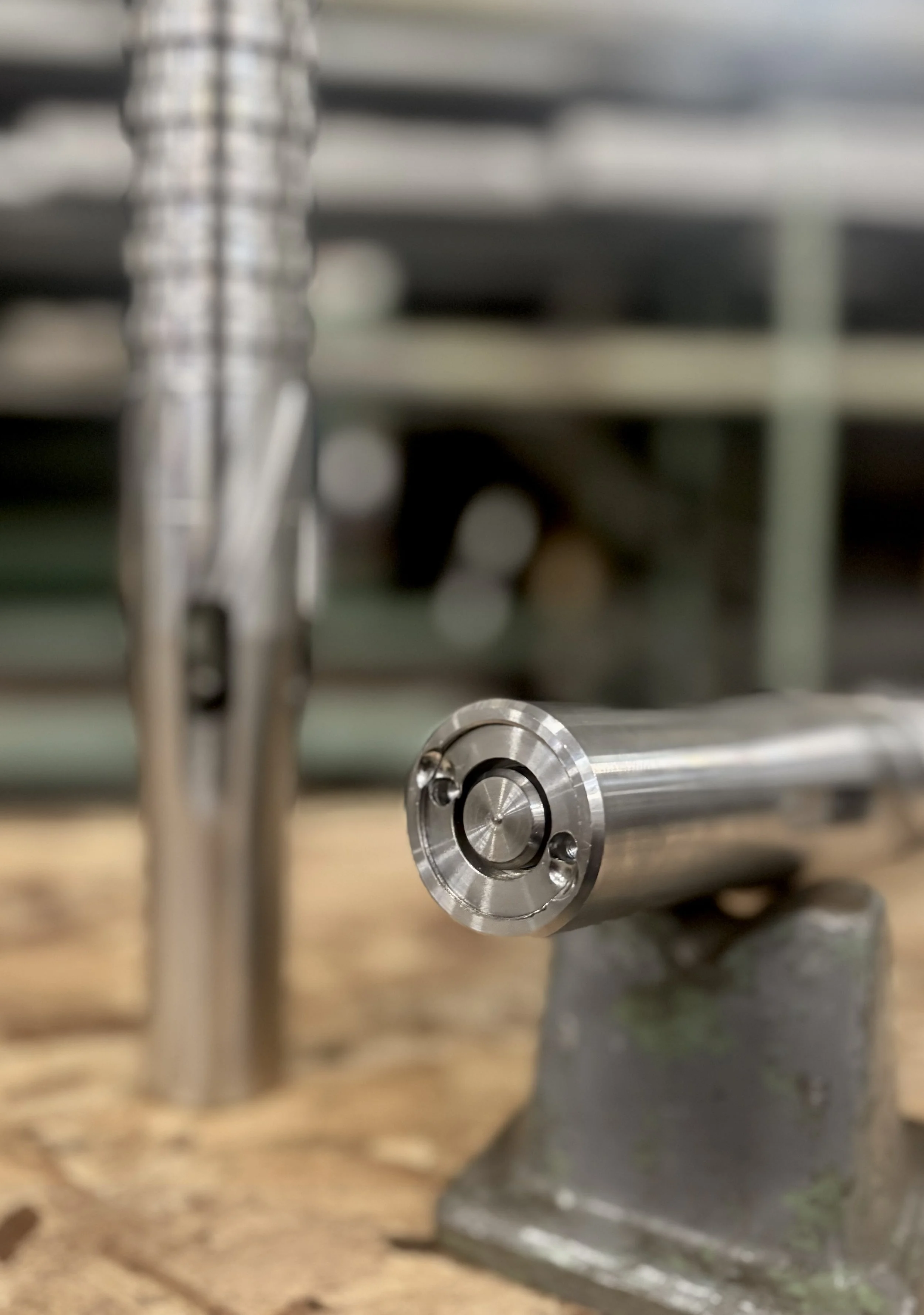

Ball & Sleeve Plungers
Ball and Sleeve plungers use two pieces in order to run: a ball which fall independently of the main body. Once reaching the bumper springs, the body latches onto the ball and begins to rise with the newly created seal. This two piece system is ideal for high fluid wells.
Available Sizes: 2.375 and 2.875
Available Lengths: 6”, 9”, 11”
Dimensions:
Available Material Types:
Alloy Steel: 4140 or 1045
Different weighted balls can be chosen to ensure the sleeve does not catch the ball during fall cycle.
Ball seat has a locking design which ensures a snug fit but allows the ball to be knocked out with the strike rod.
