Down Hole Equipment

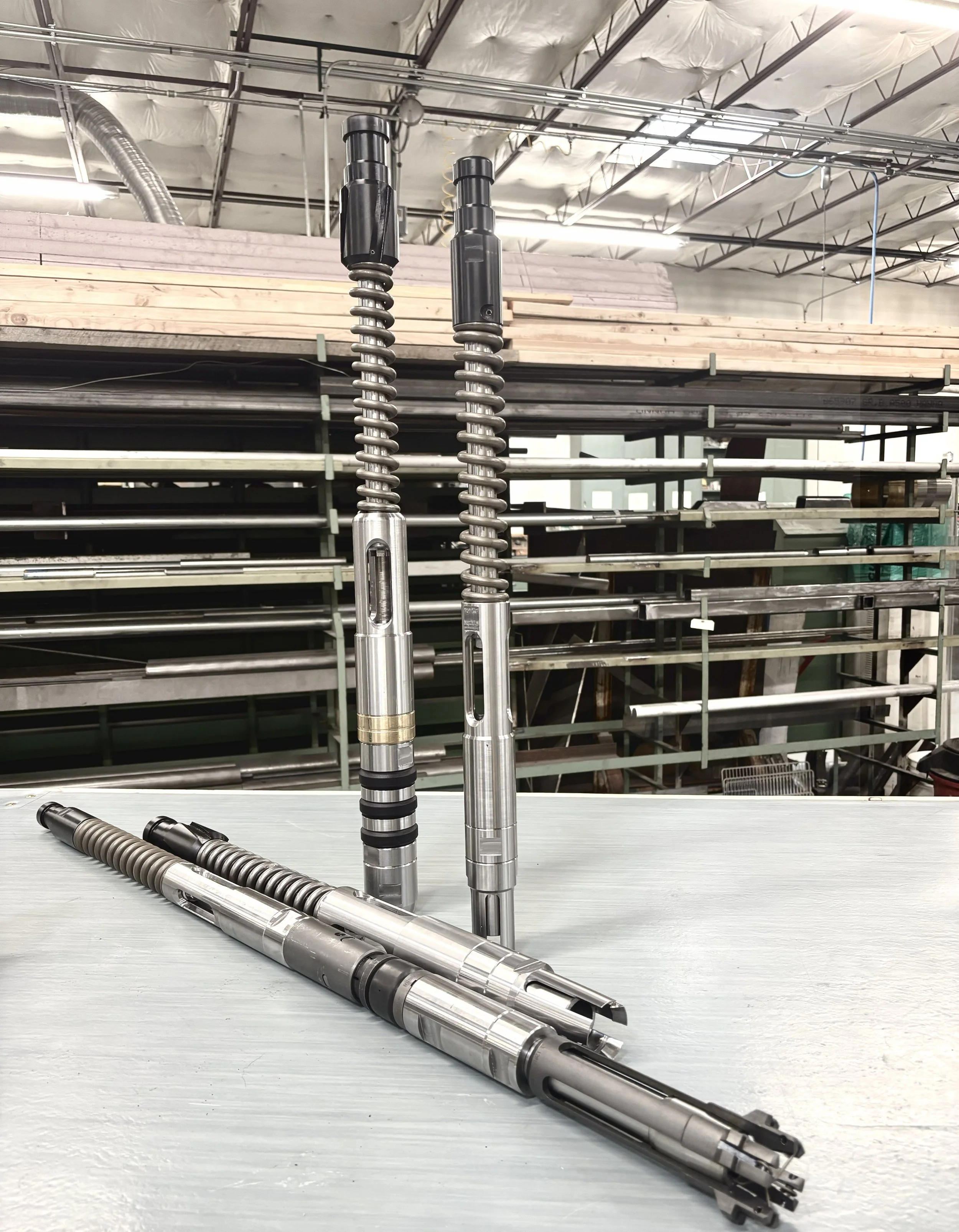

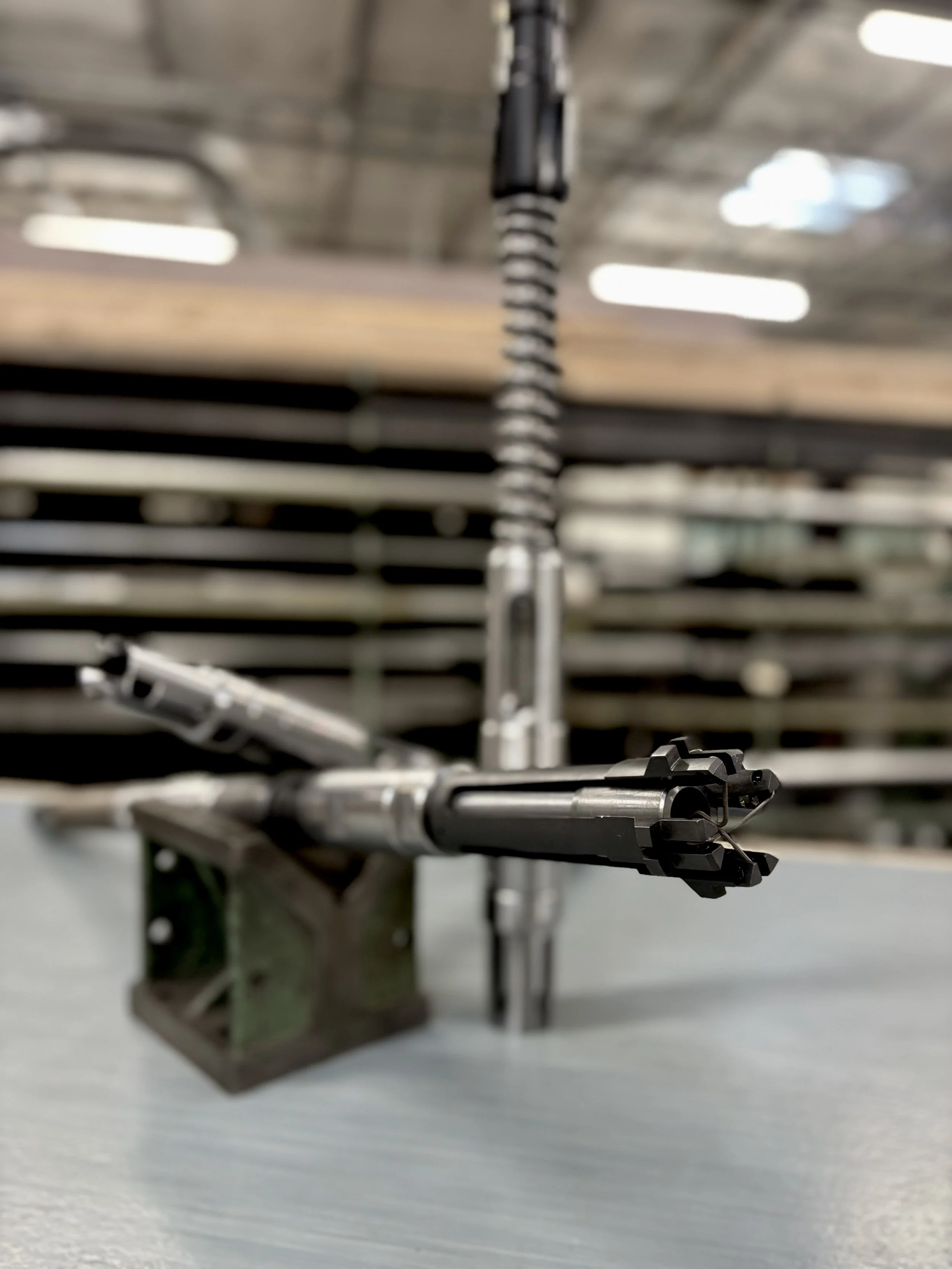

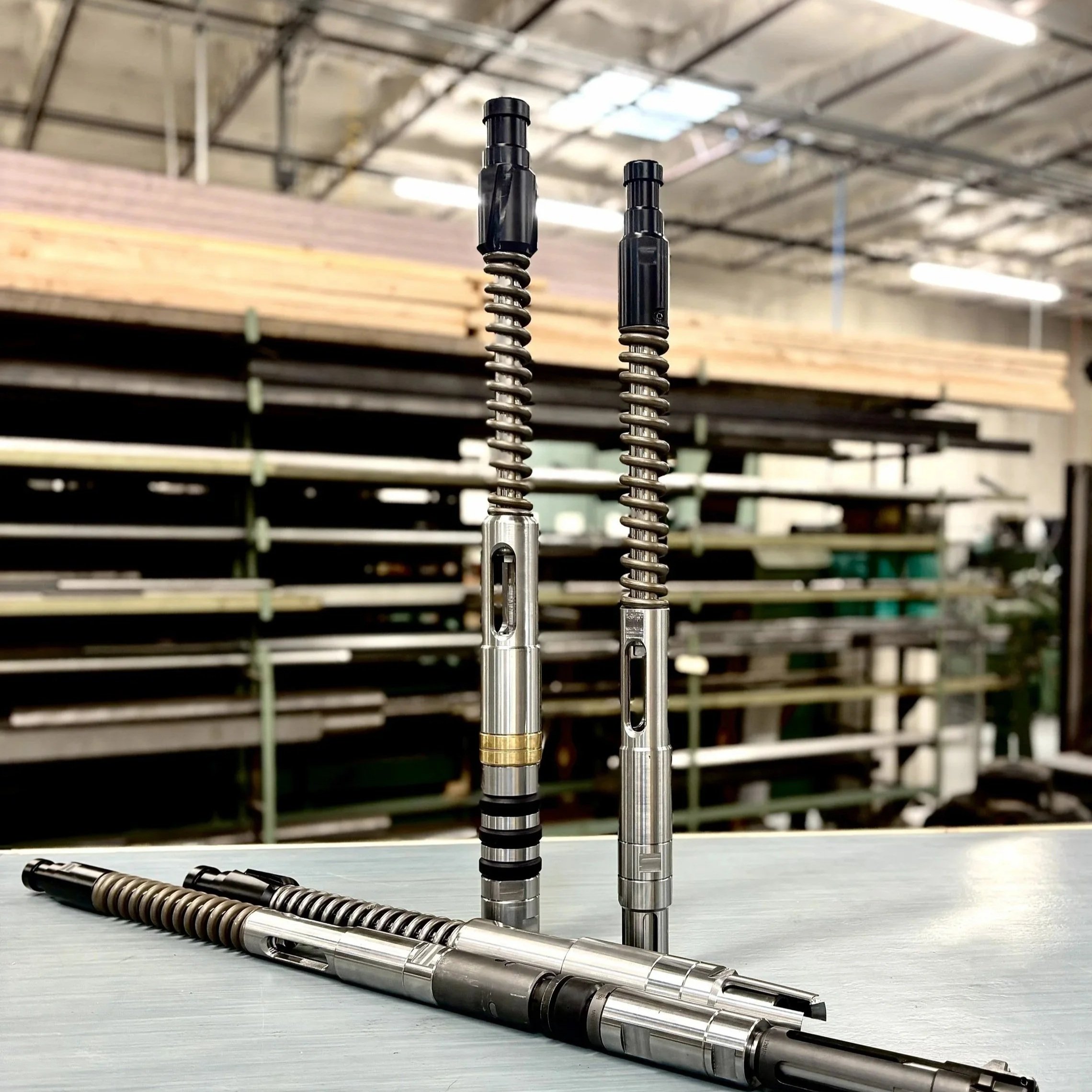

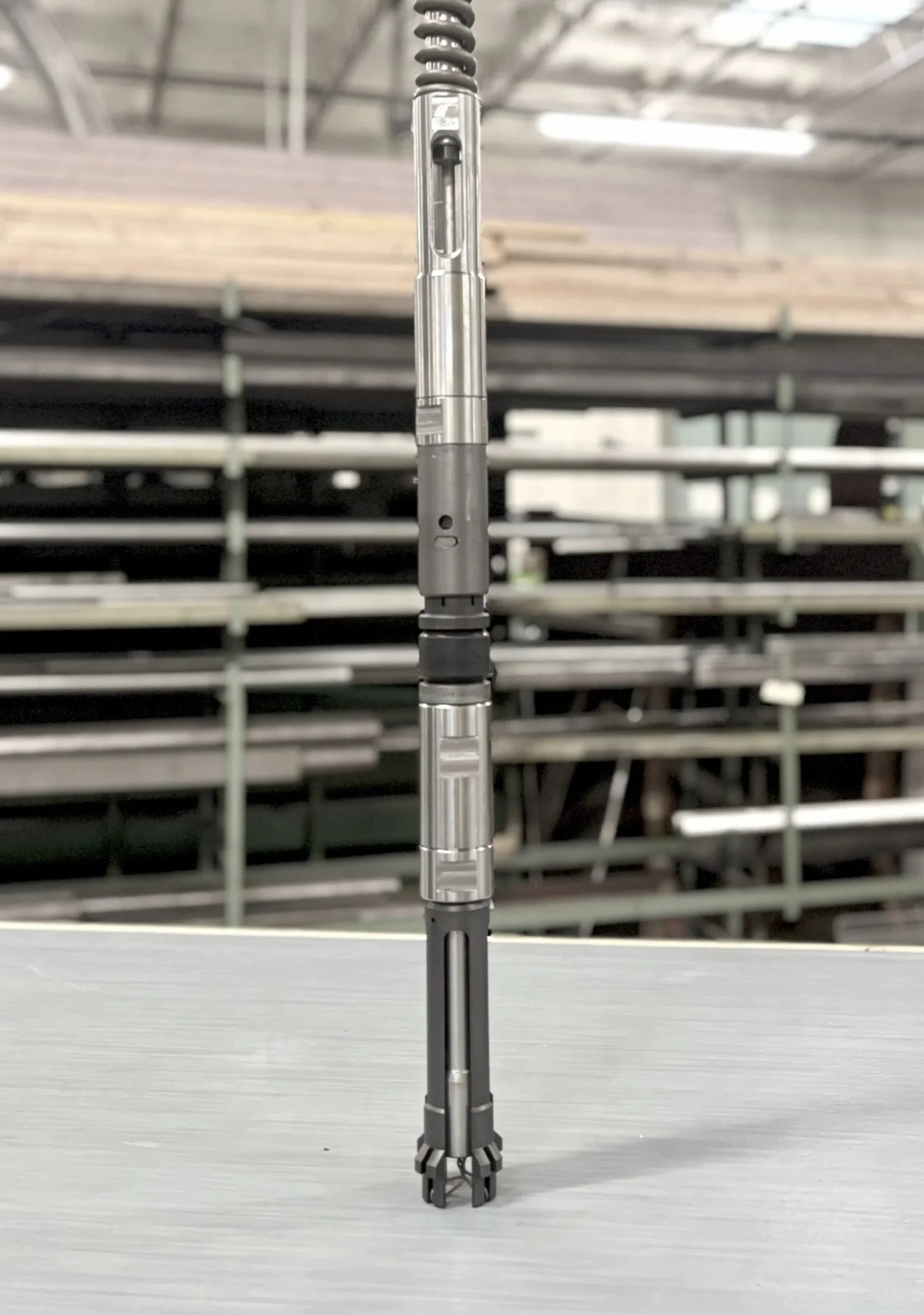

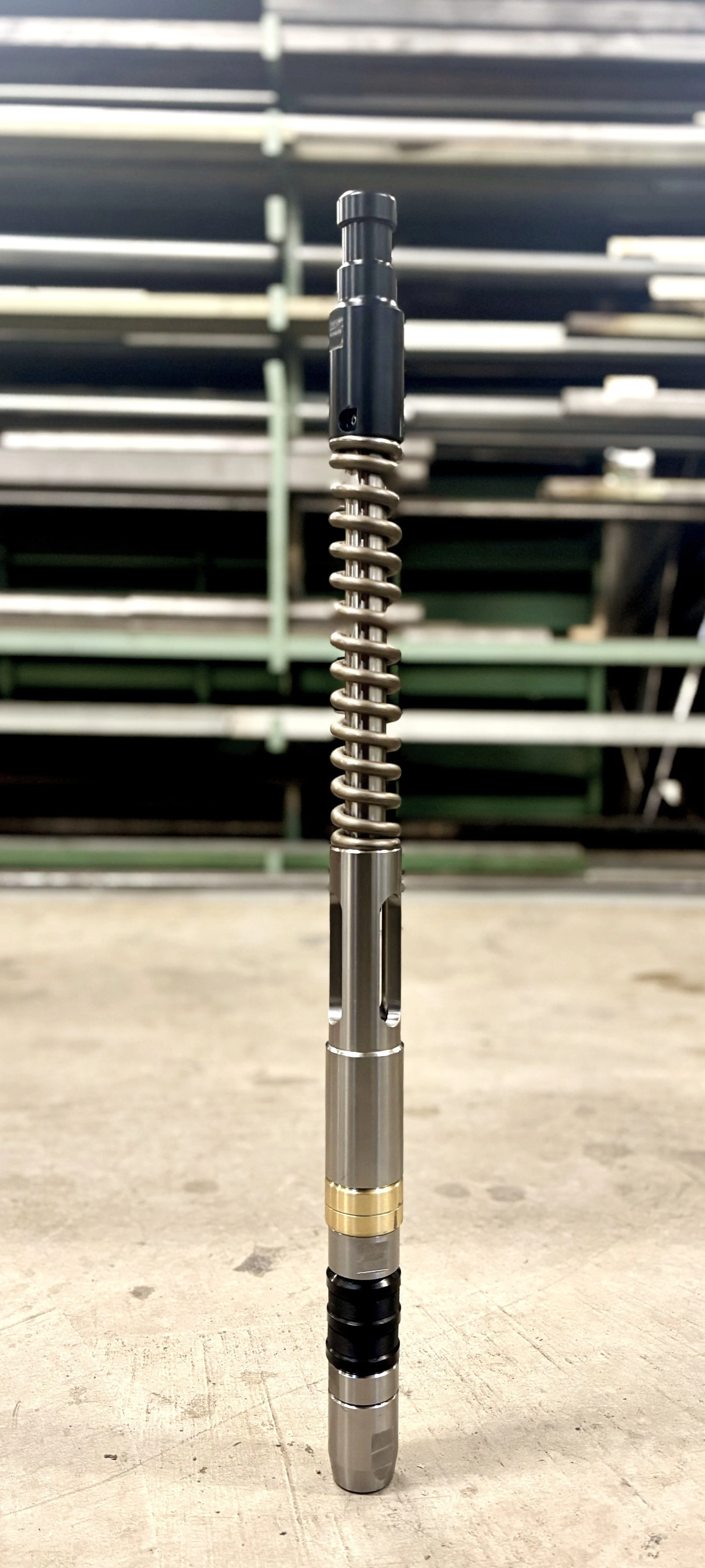

Bumper Springs
Our recently re-engineer bumper spring is top notch and designed in collaboration with some of the most experienced wireline operators in the industry.

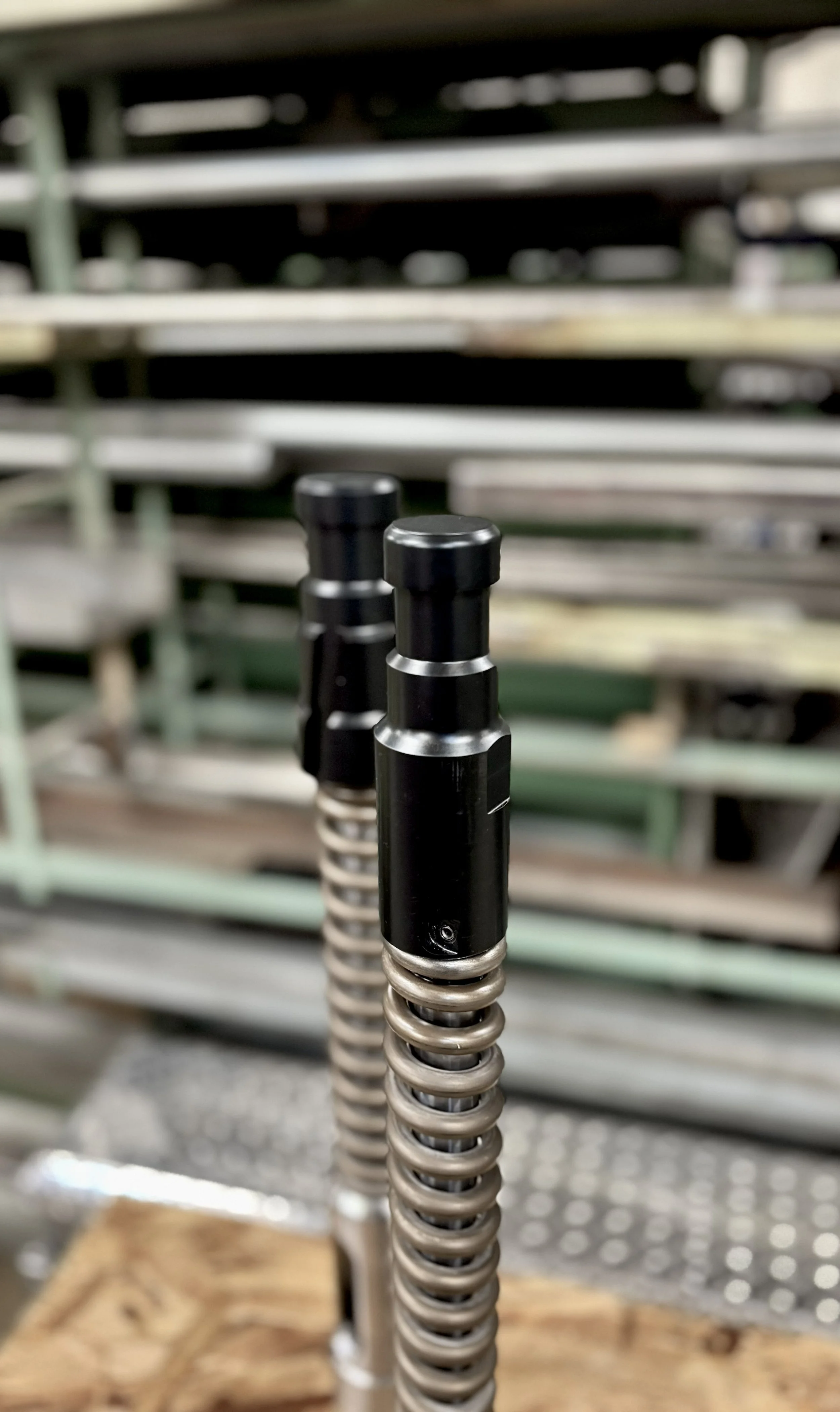

The fishneck is cut from USA sourced 4142 carbon steel. Its’ then post processed nitrated to a hardness tougher than titanium. With the side roll pin assembly, the rod has low stress concentrations to minimize breakage.

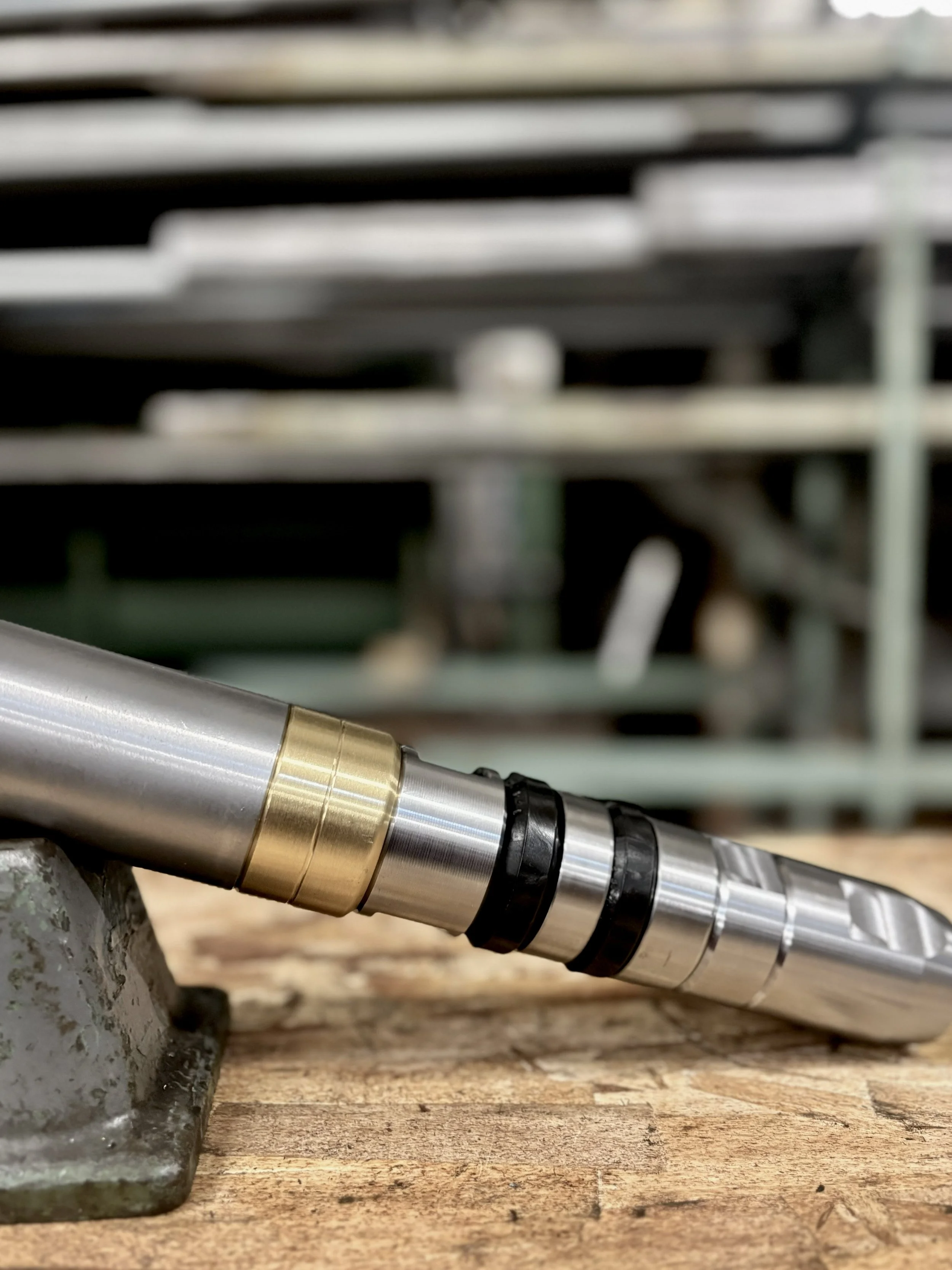

Our ‘No-Go’ is made of brass to ensure minimal corrosion and easier slickline retrieval. Many think the brass with get ground or smashed into the X nipple…we have never seen this issue in the past eight years.
For those running a collar stop configuration downhole, we noticed many competitors latch down’s allowed for the spring to slide back and forth when the well would turn on and off. This tighter fit ensures no rubbing or wearing down of the fishneck on the collar stop.
